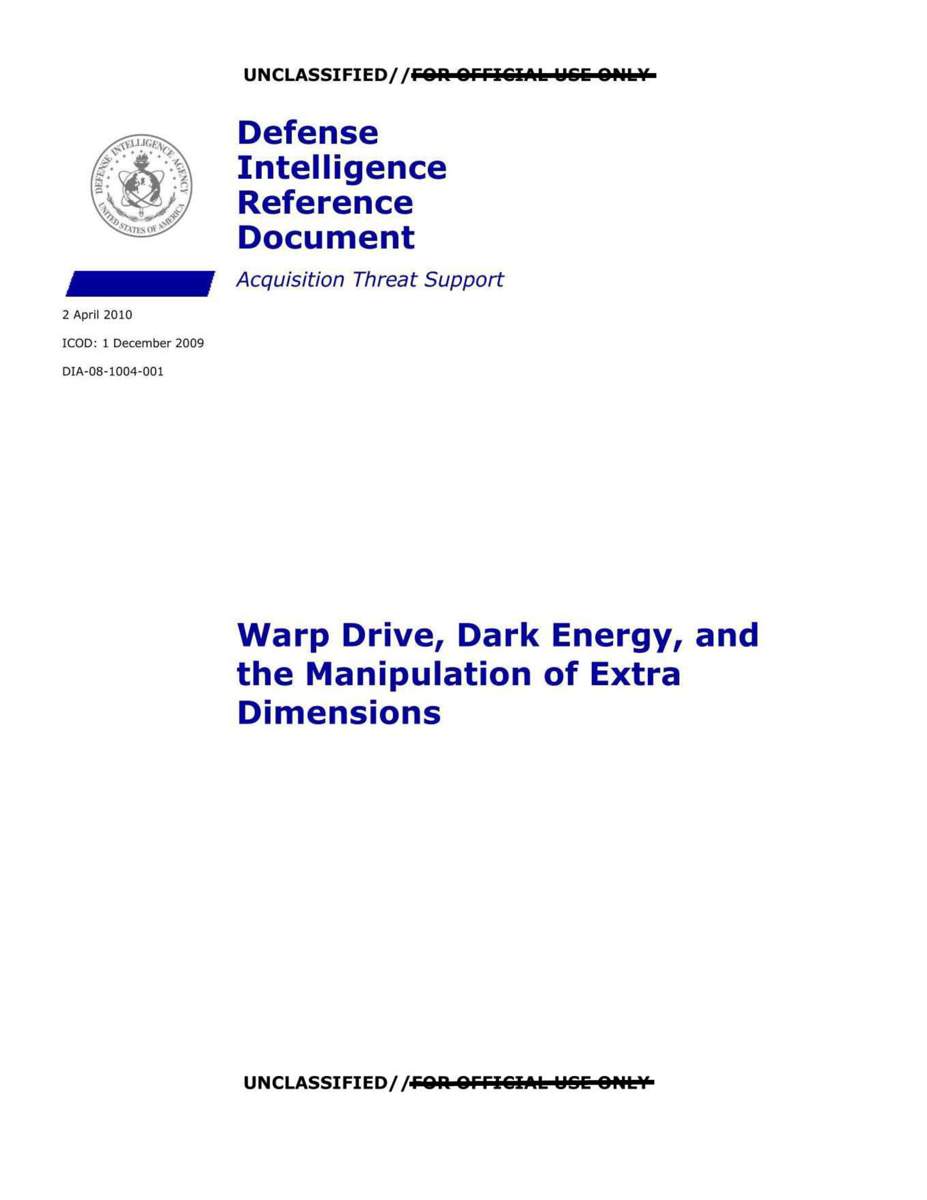

DOW-UAP-D138, AAWSAP DIRD, הנעת עיוות, אנרגיה אפלה ומניפולציה של ממדים נוספים, אפריל 2010

Warp Drive, Dark Energy, and the Manipulation of Extra
Dimensions
Prepared by:
Acquisition Support Division (DW0-3)
Defense Warning Office
Directorate for Analysis
Defense Intelligence Agency
Authors:
AAP Person 74, AAP Person 58
Administrative Note
COPYRIGHT WARN ING: Further dissemination of the photographs in this publication is not authorized.
This product is one in a series of advanced technology reports produced in FY 2009
under the Defense Intelligence Agency, Defense Warning Office's Advanced Aerospace
Weapon System Applications (AAWSA) Program. Comments or questions pertaining to
this document should be addressed to !AAP Person 1
l AAWSA Program
Manager, Defense Intelligence Agency, ATTN: CLAR/DWO-3, Bldg 6000, Washington,
ii

Contents
7. Warp Drive and Higher Dimensional Manipulation ........................................... 15
7.1 Adjusting Higher Dimensions for Propulsions ............................................ 16
Figures
Figure 2. The Interior Region of Parallel Conducting Plates ................................... 7
Figure 3. Internal Structure of a Seemingly One-Dimensional Object .................... 9
iii

Figure 5. Artist's Conception of a Futuristic Warp Drive Spacecraft ..................... 16
Figure 7. A Combination of Phenomenologically Viable Fields .............................. 19
Tables
Table 1. Transit Times to Various Exotic Destinations at 100 Times the Speed of
Table 2. Negative Energy Required for Warp Bubble (Larger Negative Energy) ..... 3
Table 3. Negative Energy Required for Warp Bubble ............................................ 22
iv

Warp Drive, Dark Energy, and the Manipulation of Extra
Dimensions
Introduction
If one is to realistically entertain the notion of interstellar exploration in
timeframes of a human lifespan, a dramatic shift in the traditional approach to
spacecraft propulsion is necessary. It has been known and well tested since
the time of Einstein that all matter is restricted to motion at sublight velocities
(<< 3 x 108 m/s, the speed of light, or c), and that as matter approaches the
speed of light, its mass asymptotically approaches infinity. This mass increase
ensures that an infinite amount of energy would be necessary to travel at the
speed of light, and, thus, this speed is impossible to reach and represents an
absolute speed limit to all matter traveling through spacetime.
Even if an engine were designed that could propel a spacecraft to an
appreciable fraction of light speed, travel to even the closest stars would take
many decades in the frame of reference of an observer on Earth. Although
these lengthy transit times would not make interstellar exploration impossible,
they would certainly dampen the enthusiasm of governments or private
individuals funding these missions. After all, a mission whose success is
perhaps a century away would be difficult to justify. In recent years, however,
physicists have discovered two loopholes to Einstein's ultimate speed limit:
the Einstein…
